Dumbwaiters


SLIDE-UP HOISTWAY

Construction and standard features:
  • Doors bear a 1-1/2 hour (B) rating from Underwriters Laboratories Inc. (Maximum door opening 48” x 66”)
  • 3” round vision panel
  • Non-crushing and non-shearing rubber astragal
  • Finger grip built into rubber astragal assembly
  • Ball bearing sheaves which can be easily replaced from the hatch side of the door
  • Door tracks built to appropriate sill height for ease of installation
  • Anchoring to the floor accomplished through pre-mounted floor angle
  • Durable roller chain
  • 16 gauge sheet metal door panels and frame
  • Air dry pearl gray enamel primer
  • C.J. Anderson HG-1 interlock
  • Non-plugable interlock

Options available
  • Plain steel or stainless steel with a #4 finish
  • Frame built for drywall or masonry construction
  • Pushbutton station mounted in door jamb
  • Car arrival station mounted in header
  • Keyed manual release mounted in door jamb
  • Fusible link device
  • Interlock available in NEMA types 1, 4, 7 and 9
Counter loading and floor loading styles

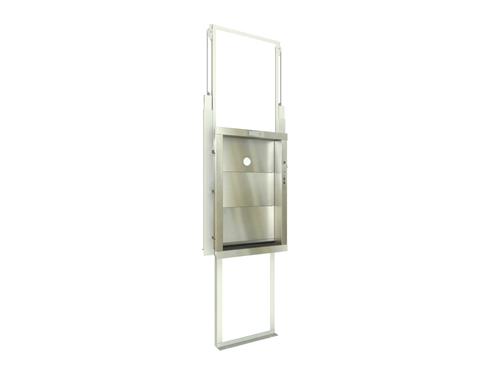

Slide-Up Counter

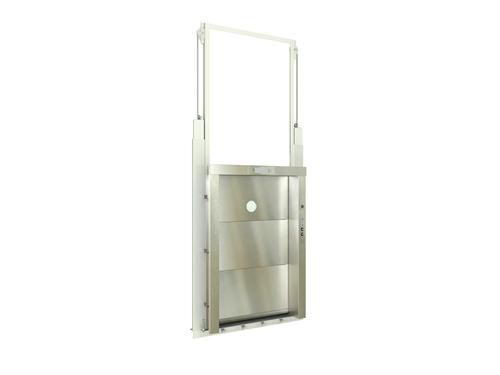

Slide-Up Floor
